Circuit Diagram
Circuit Diagram

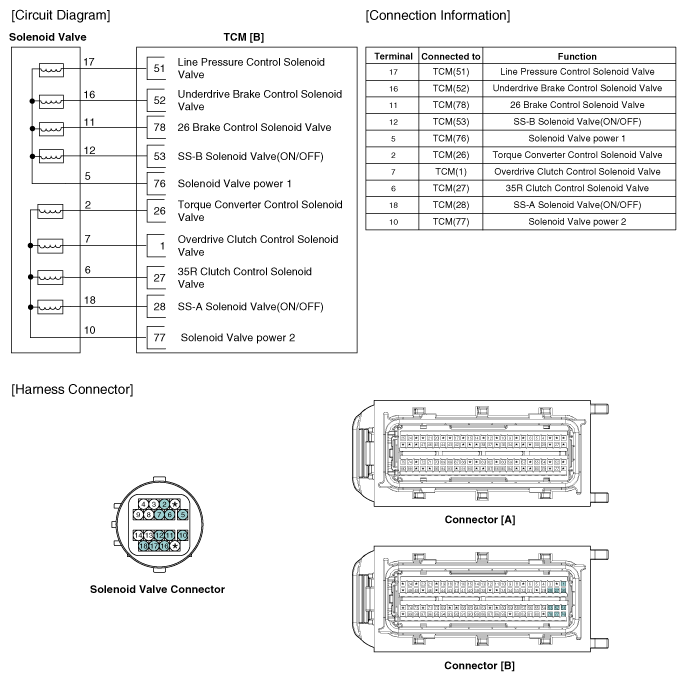

Fig 1: Line Pressure Control Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
