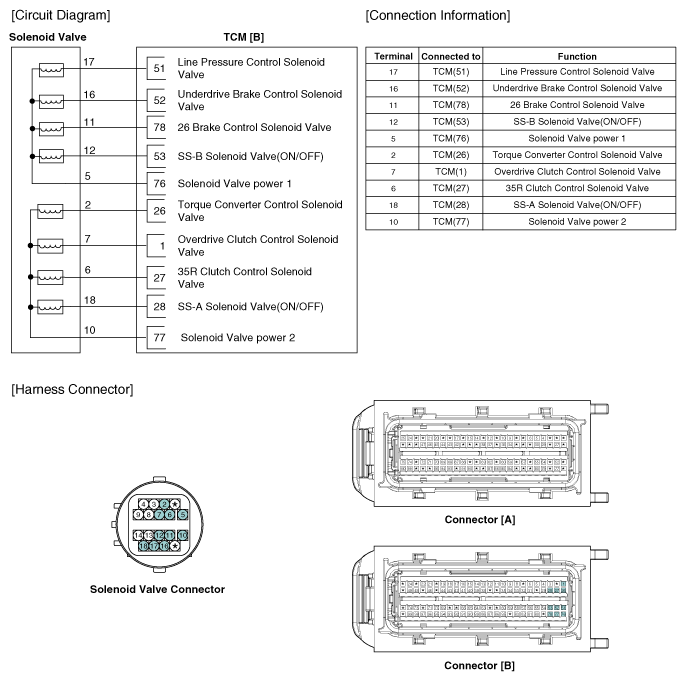

Home › Kia › 2016 › Cadenza Base › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Torque Converter Control Solenoid Valve (T/CON_VFS) › Schematic Diagrams › Circuit Diagram
