Repair procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
  1. Refill the automatic transaxle with fluid.
    (Refer to Hydraulic System - "FLUID ")
  2. Reset the automatic transaxle adaptive values using the KDS.

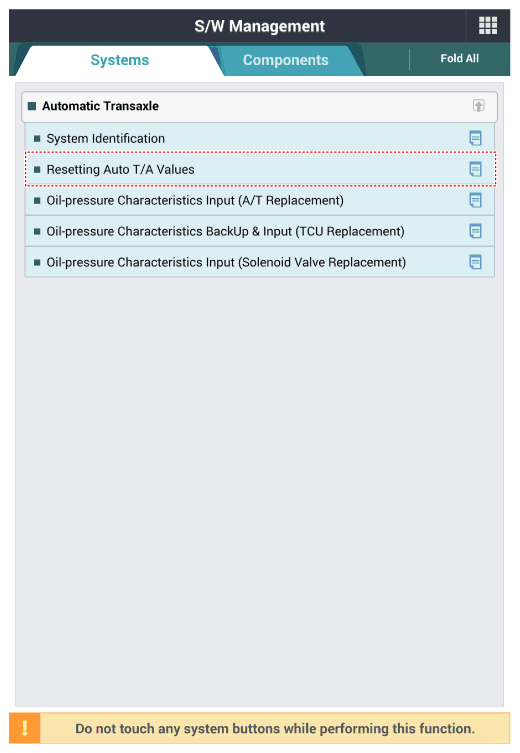

    Fig 1: Screen Display - Reset Automatic Transaxle Adaptive Values
    Courtesy of KIA MOTORS AMERICA, INC.
- Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
- Confirm that there is no fluid leakage on connections after repairing.
