Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select "Diagnostic Trouble Codes (DTC)  " button, Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

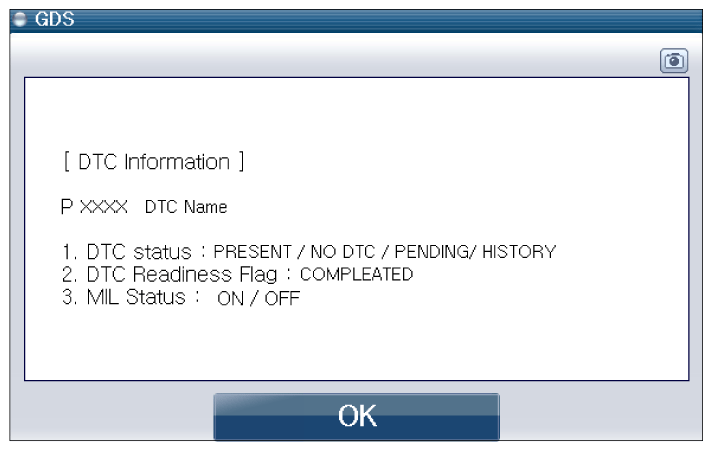

    Fig 1: Screen Display - DTC Status Parameter
    G11790136Courtesy of KIA MOTORS AMERICA, INC.
  5. Record all DTC's, DTC status and freeze frame data. Does DTC Status indicate "Present"?

    YES

    • Go to next procedure.

    NO

    • Clear DTC and check if this DTC is set after test-driving under enable conditions. If DTC isn't displayed after the test, it was intermittent fault. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
