Audio System
›
Troubleshooting
›
Chart 1
Chart 1

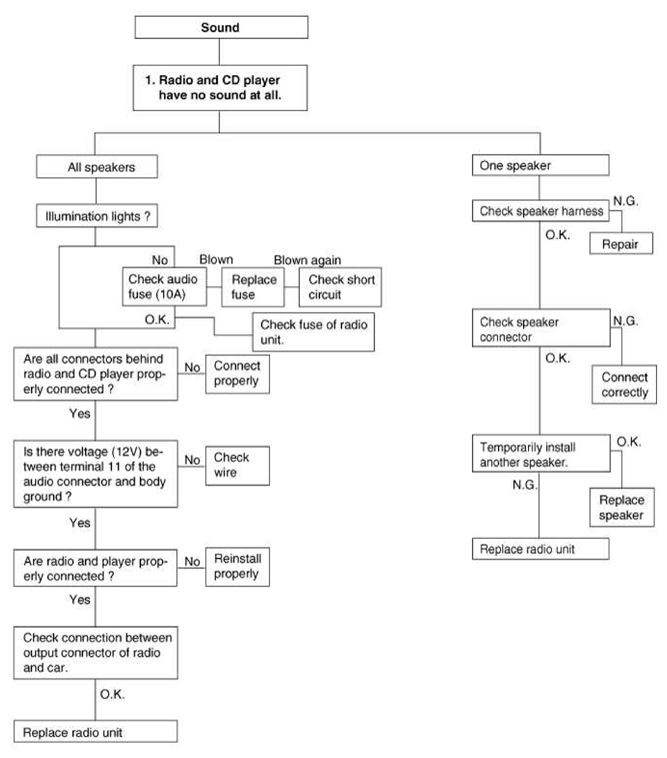

Fig 1: CD Player - Troubleshooting Flowchart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

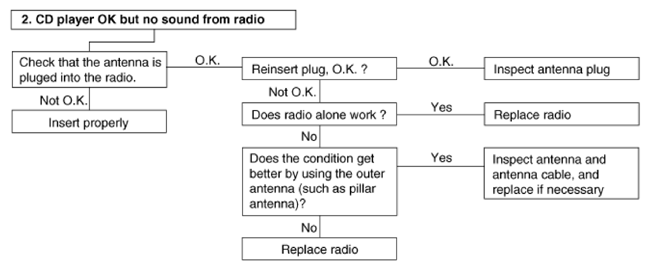

Fig 2: CD Player - Troubleshooting Flowchart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
