Integrated Memory System (IMS)
›
Schematic Diagrams
›
Components
›
Circuit Diagram
Circuit Diagram

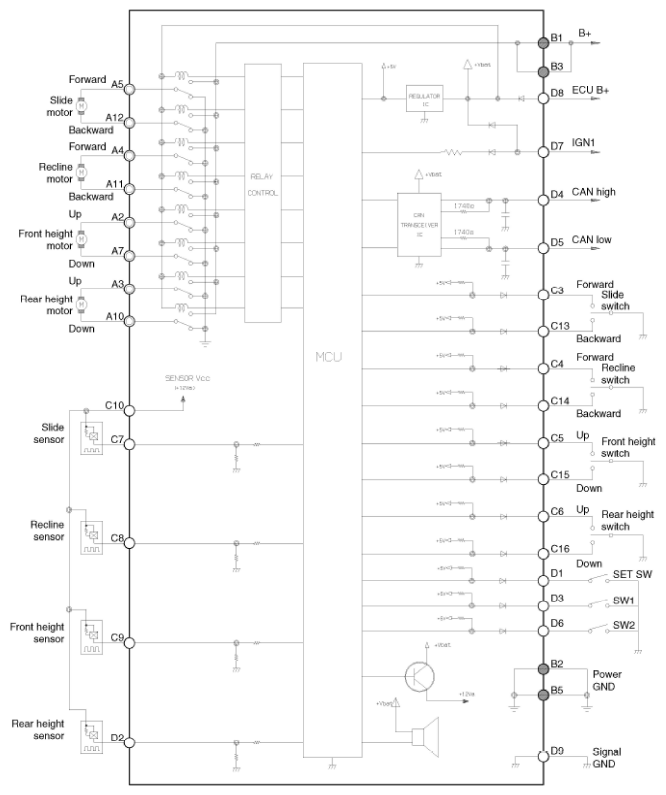

Fig 1: Integrated Memory Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
