DTC B1602: CAN Error: General Description

This is DTC which is related with communication error between SJB and other units.

* Body CAN communication Control Units: BCM(Body Control Module), PSM (Power Seat Module), SMK (Smart Key), SJB(Smart Junction Box).

*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

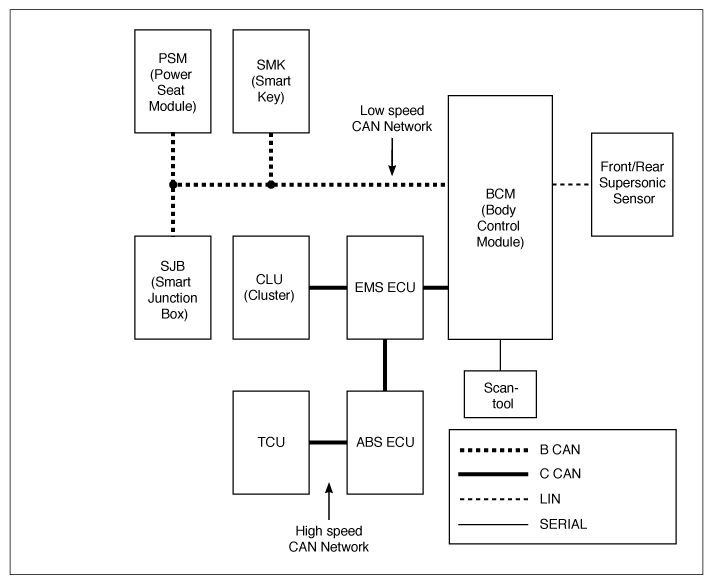

Fig 1: Body CAN Communication Diagram
G11797644Courtesy of KIA MOTORS AMERICA, INC.
