Schematic Diagrams
›
Circuit Diagram
›
[Driver Auto Down]
[Driver Auto Down]

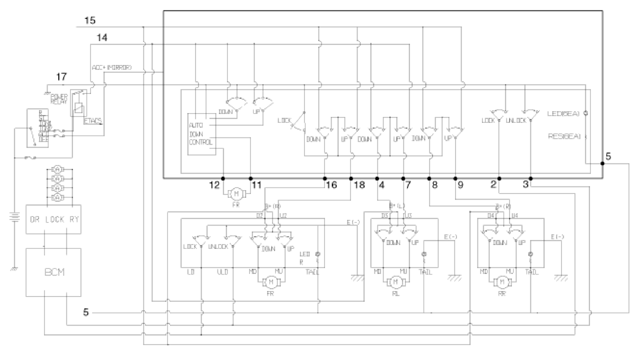

Fig 1: Driver Auto Down Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
