Passenger Power Window Switch
Passenger Power Window Switch

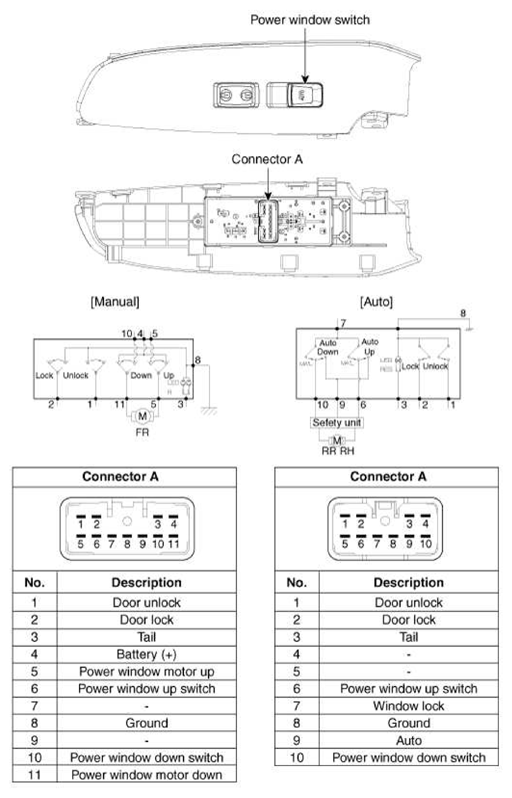

Fig 1: Passenger Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
