Components And Components Location: Components

[LH]

Fig 1: Exploded View Of TJ Joint (LH)

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

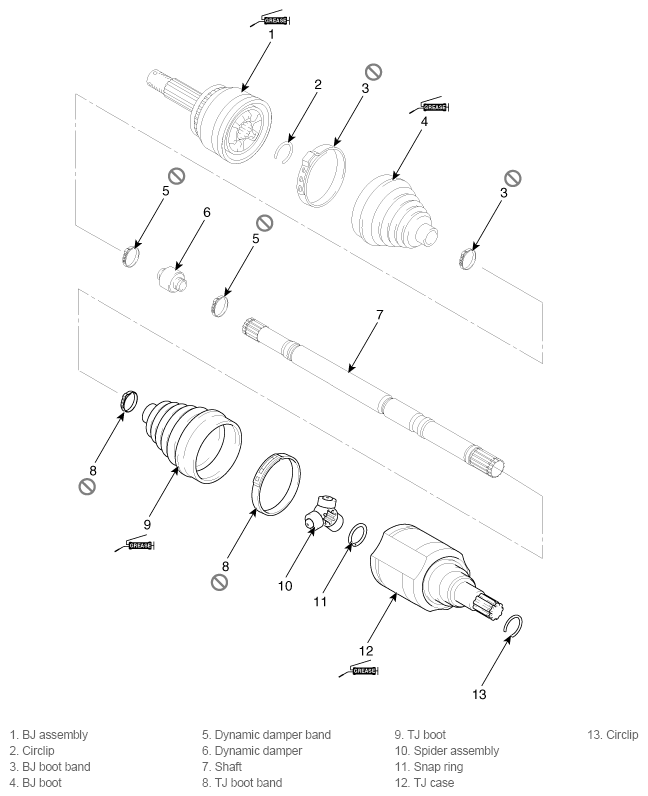

Fig 2: Exploded View Of TJ Joint (RH)

Courtesy of KIA MOTORS AMERICA, INC.
