Home › Kia › 2016 › Forte EX › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 2.0L › Battery › Troubleshooting

Charging System - 2.0L: Battery: Troubleshooting

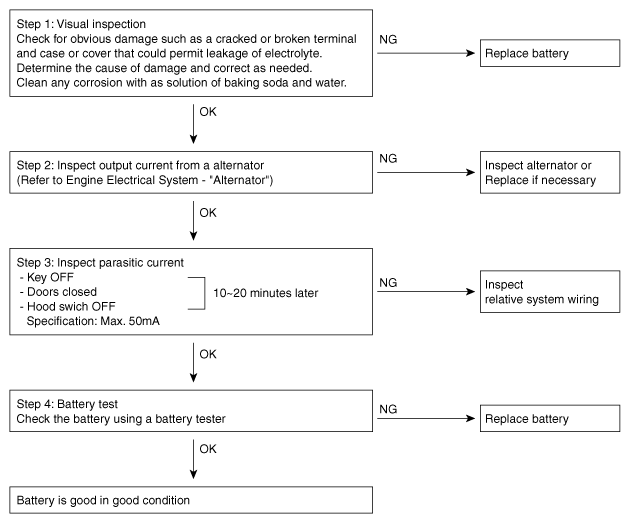

Fig 1: Troubleshooting Flow Chart
G11796800Courtesy of KIA MOTORS AMERICA, INC.
