Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

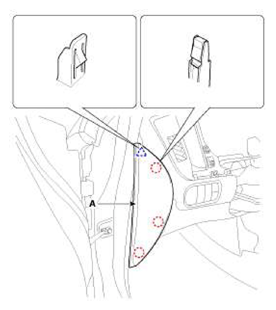

Fig 1: Remove Crash Pad Side Cover (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

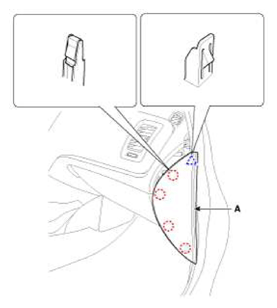

Fig 2: Remove Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Replace any damaged clips.
