Wave Form
Wave Form

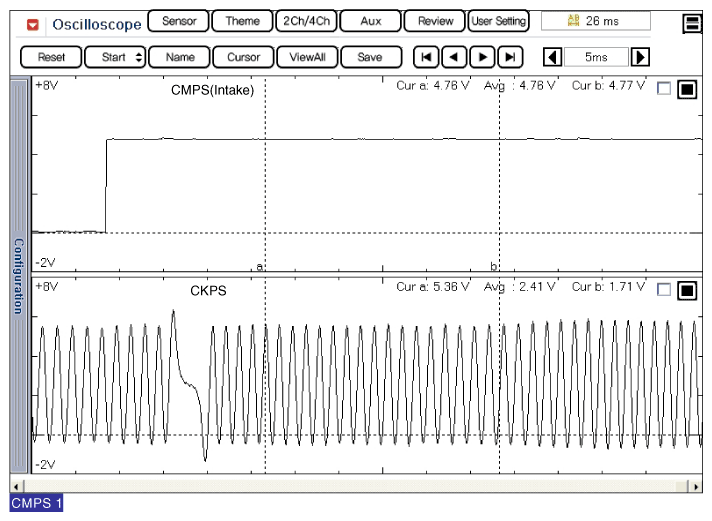

Fig 1: Screen Display - Signal Waveform Of Crankshaft Position Sensor And Camshaft Position Sensor (Intake)
Courtesy of KIA MOTORS AMERICA, INC.

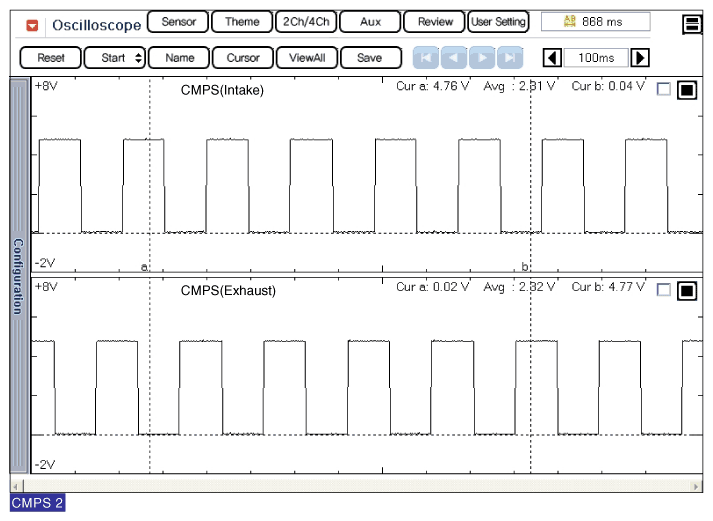

Fig 2: Screen Display - Signal Waveform Of Camshaft Position Sensor (Intake And Exhaust)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
