Circuit Diagram

(M/T)

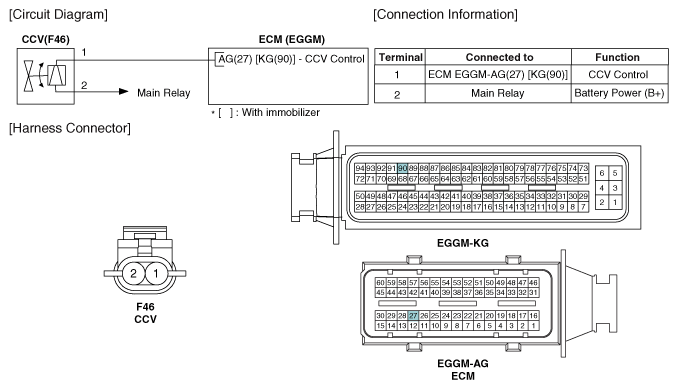

Fig 1: Canister Close Valve Circuit Diagram (M/T)
G11797003Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

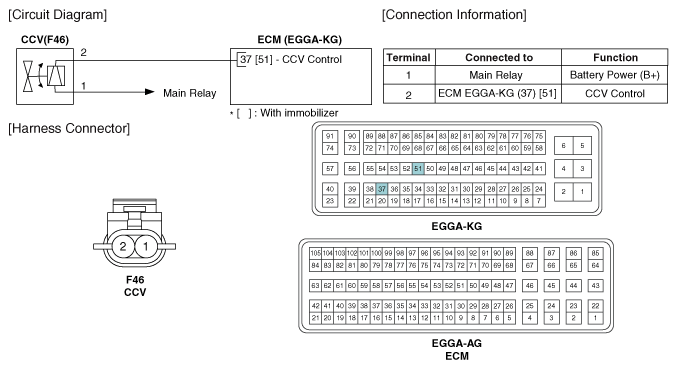

Fig 2: Canister Close Valve Circuit Diagram (A/T)
G11797004Courtesy of KIA MOTORS AMERICA, INC.
