Engine Control System - 2.0L
›
ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

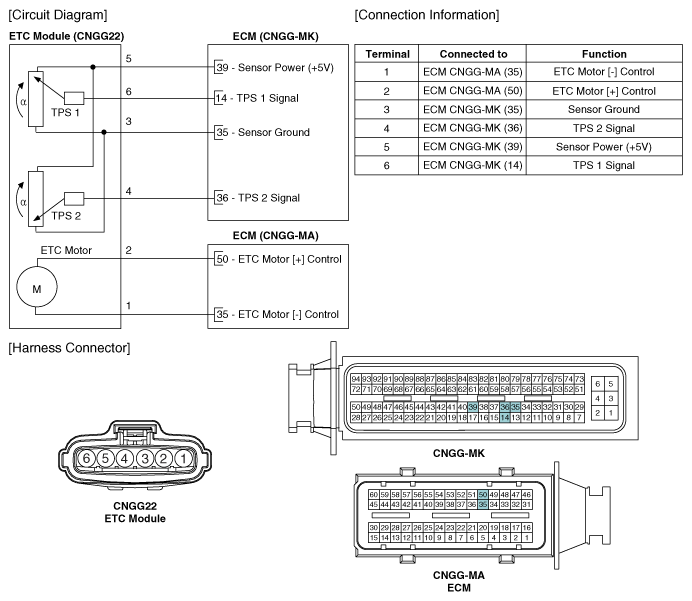

Fig 1: Electronic Throttle Control System Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

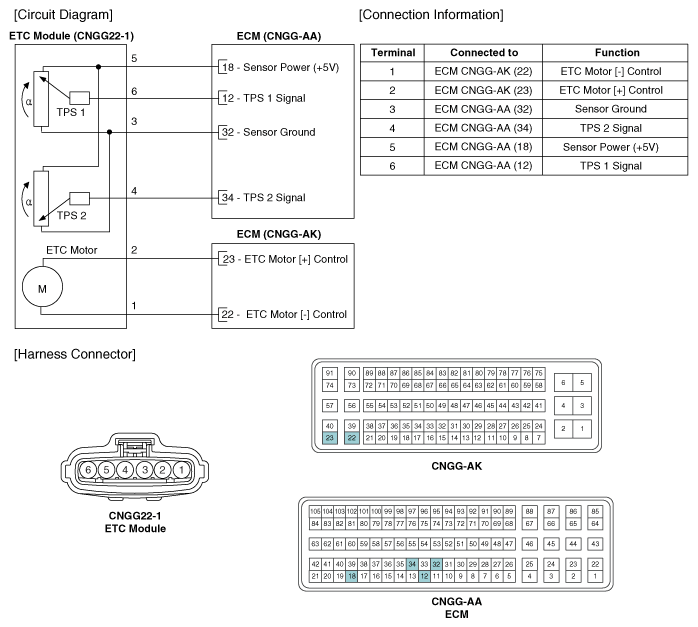

Fig 2: Electronic Throttle Control System Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
