Circuit Diagram

(M/T)

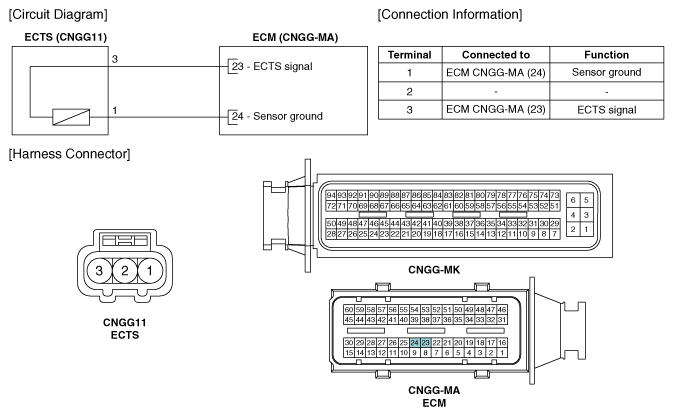

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram (M/T)
G11796916Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

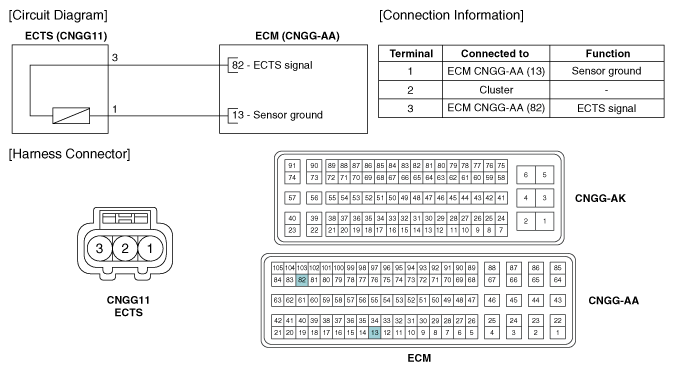

Fig 2: Engine Coolant Temperature Sensor Circuit Diagram (A/T)
G11796917Courtesy of KIA MOTORS AMERICA, INC.
