Circuit Diagram

(M/T)

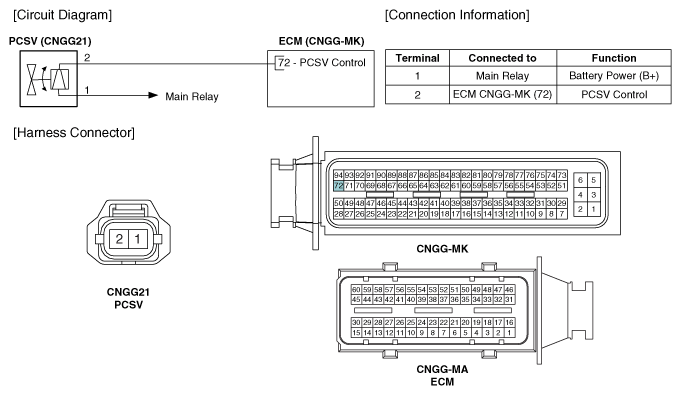

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T)
G11796984Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

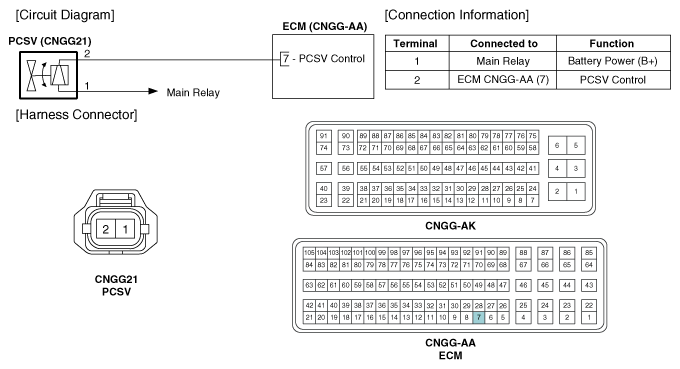

Fig 2: Purge Control Solenoid Valve Circuit Diagram (A/T)
G11796985Courtesy of KIA MOTORS AMERICA, INC.
