Circuit Diagram

(M/T)

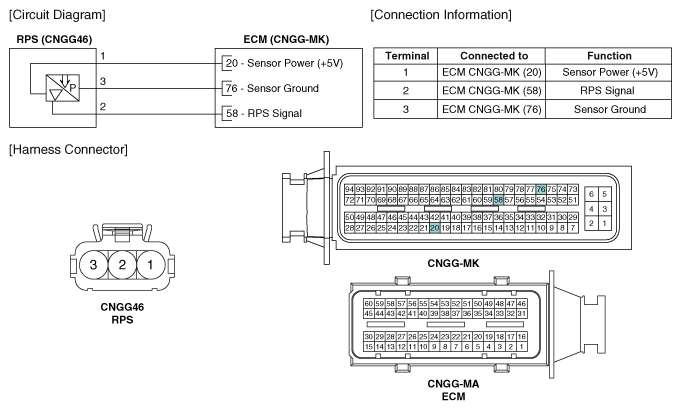

Fig 1: Rail Pressure Sensor Circuit Diagram (M/T)
G11796952Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

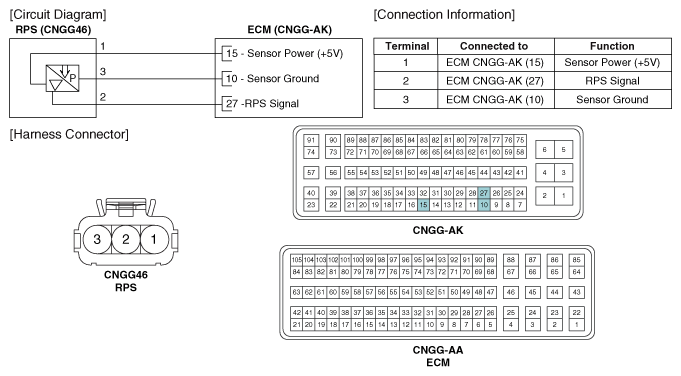

Fig 2: Rail Pressure Sensor Circuit Diagram (A/T)
G11796953Courtesy of KIA MOTORS AMERICA, INC.
