Repair Procedures: Inspection

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the lighting switch of the multi-function switch.
(Refer to REMOVAL )
With the front fog lamp switch, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.

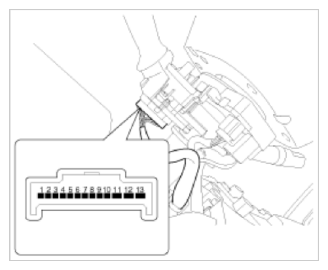

Fig 1: Front Fog Lamp Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
