Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be careful not to damage the hood and body.

Information

When removing and installing the hood, an assistant is necessary.
When removing the clips, use a clip remover.

After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).
Tightening Torque:

21.6~26.5 N.m (2.2~2.7 kgf.m, 15.9~19.5 lb-ft)

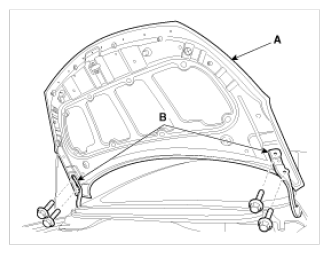

Fig 1: Hood Assembly And Hood Hinge
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
