General Service Information: Disassembly

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance.

Inspection of parts
Each part, when removed, should be carefully on suspected for malfunction, deformation, damage, and other problems.

Fig 1: Inspecting Vehicle Parts
Courtesy of KIA MOTORS AMERICA, INC.
Arrangement of parts
All disassembled parts should be carefully arranged for effective reassembly.

Be sure to separate and correctly identify the parts to be replaced from those that will be used again.

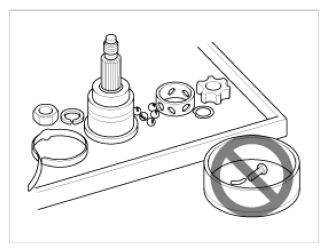

Fig 2: Arranging Parts
Courtesy of KIA MOTORS AMERICA, INC.
Cleaning parts for reuse
All parts to be used again should be carefully and thoroughly cleaned by an appropriate method.

Fig 3: Cleaning Vehicle Parts
Courtesy of KIA MOTORS AMERICA, INC.
