Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

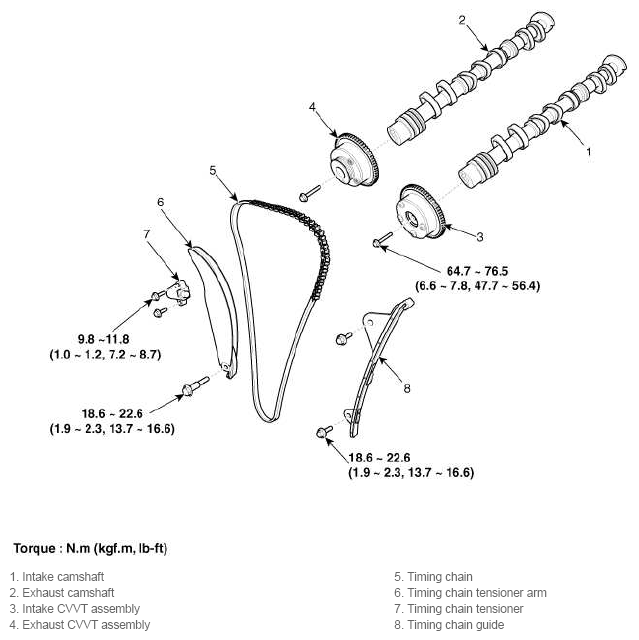

Fig 1: Timing Chain Components Location
G11793144Courtesy of KIA MOTORS AMERICA, INC.
