Automatic Transaxle Control System - 2.0L
›
Output Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

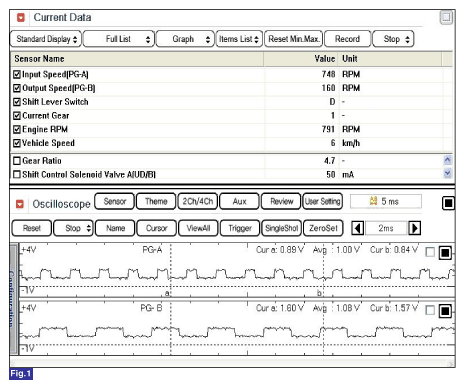

Fig 1: Input/Output Speed Sensor At Low Speed - GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.

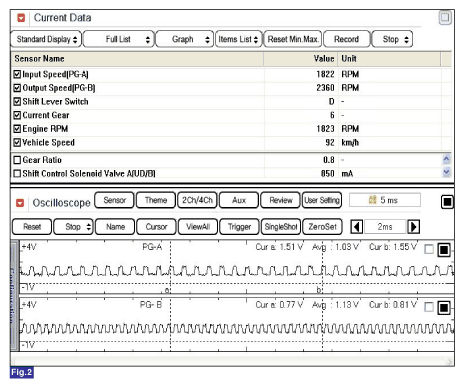

Fig 2: Input/Output Speed Sensor At High Speed - GDS Screen
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
