Automatic Transaxle Control System - 2.0L
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

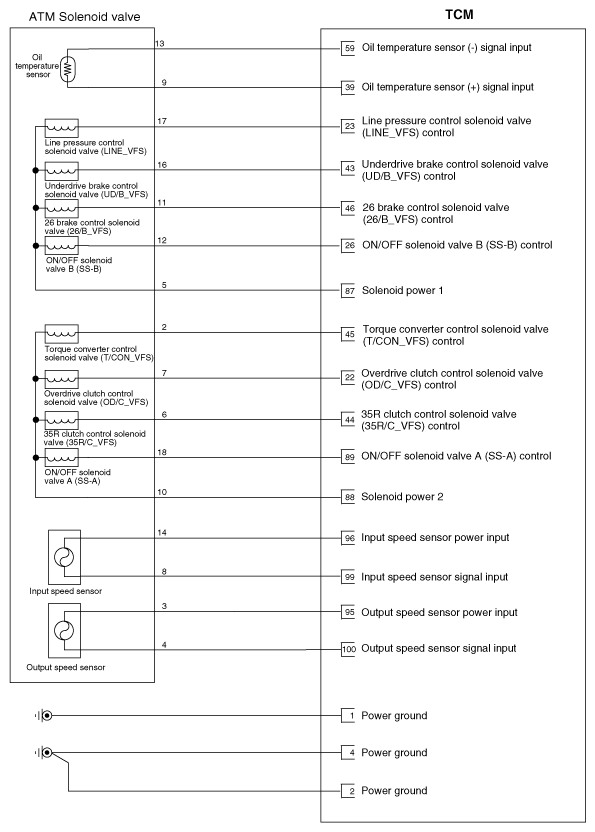

Fig 1: Transaxle Control Module (TCM) Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

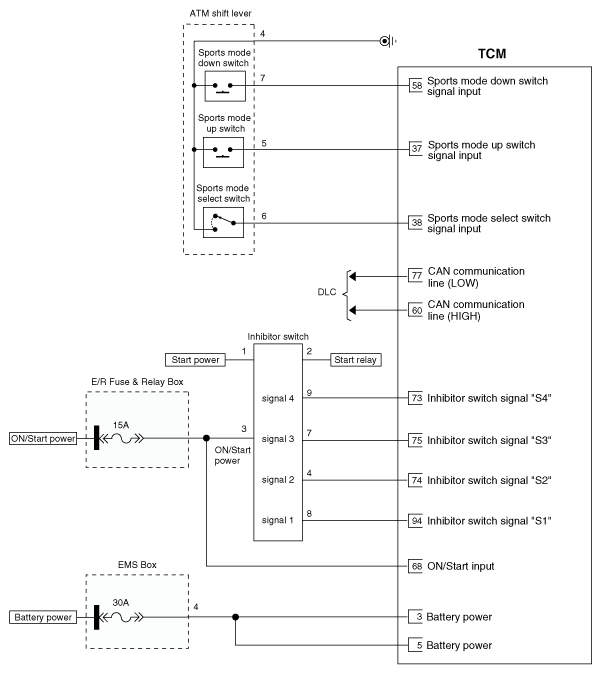

Fig 2: Transaxle Control Module (TCM) Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
