Engine Control System - 2.0L
›
Components And Components Location
›
Components Location
Components Location

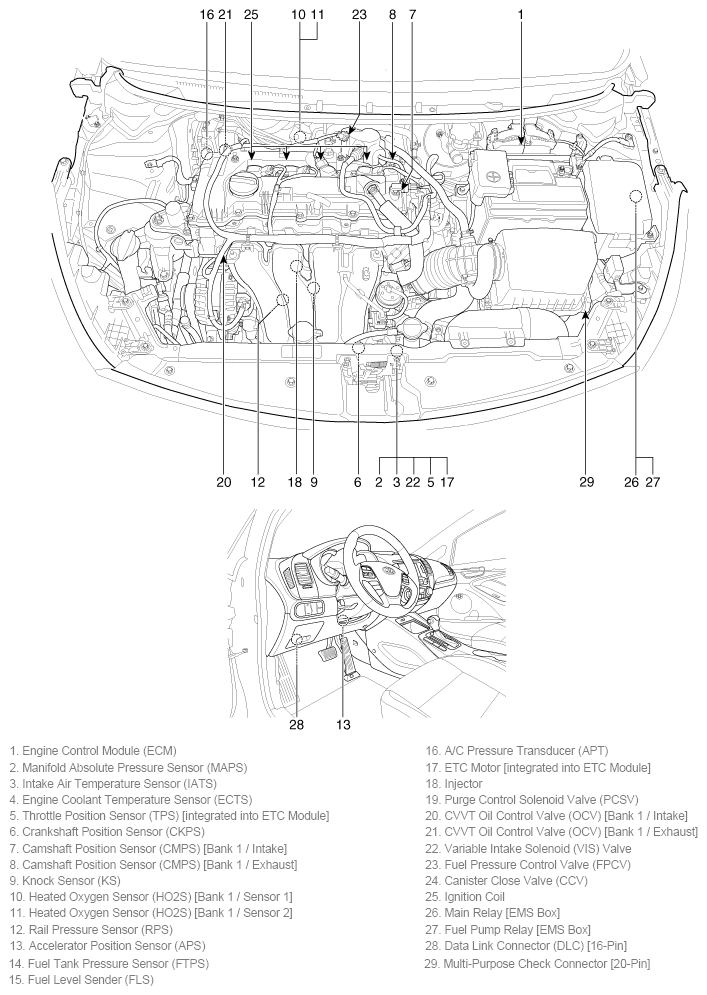

Fig 1: Locate Engine Control System Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

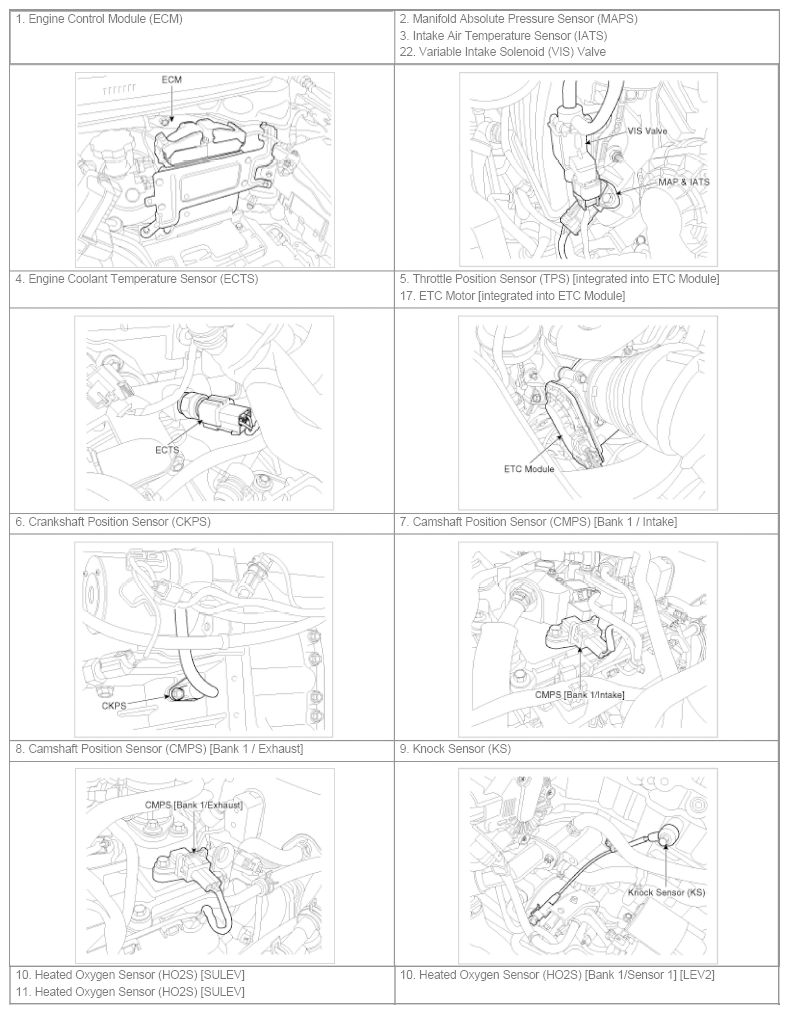

Fig 2: Locate Engine Control System Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

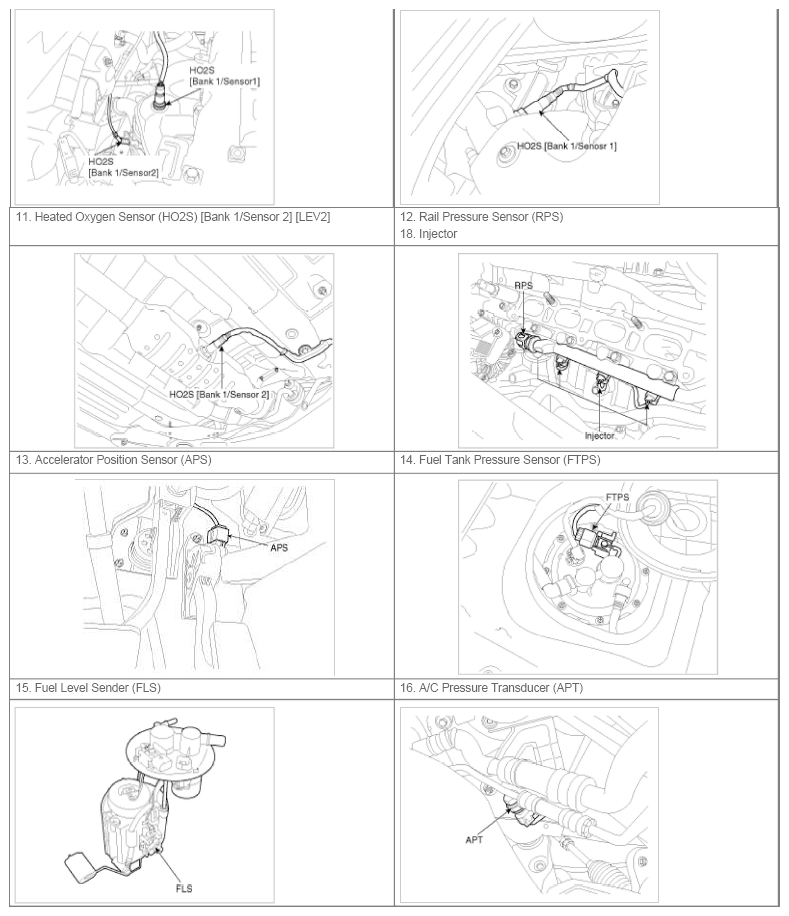

Fig 3: Locate Engine Control System Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

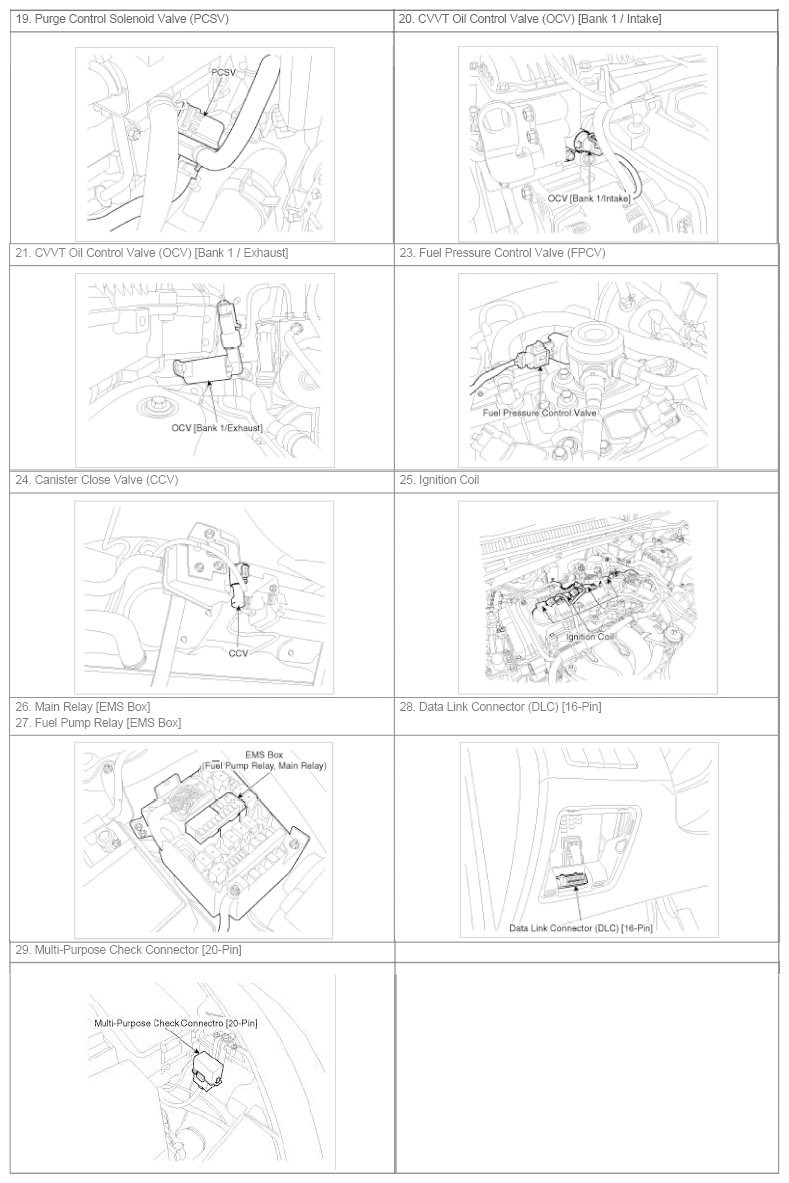

Fig 4: Locate Engine Control System Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
