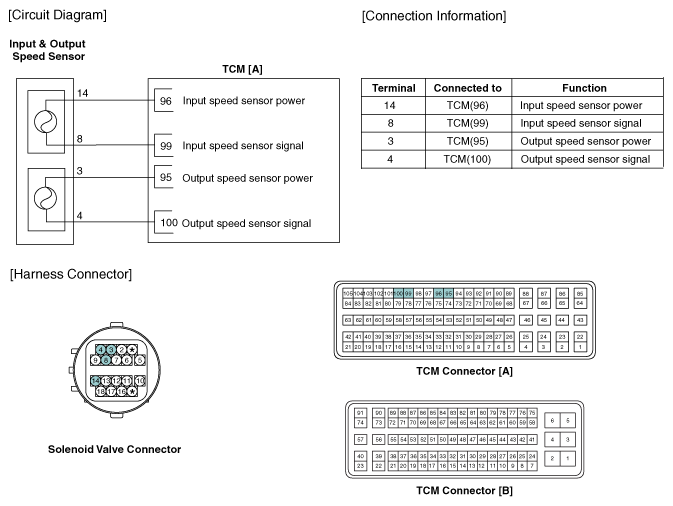

Home › Kia › 2016 › Forte Koup EX, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Output Speed Sensor › Schematic Diagrams › Circuit Diagram
