Circuit Diagram

(M/T)

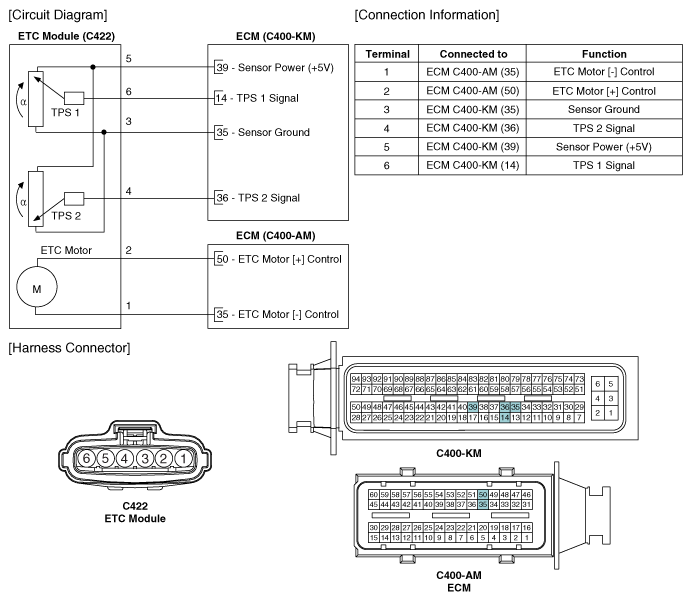

Fig 1: ETC Motor Circuit Diagram - M/T
G11794846Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

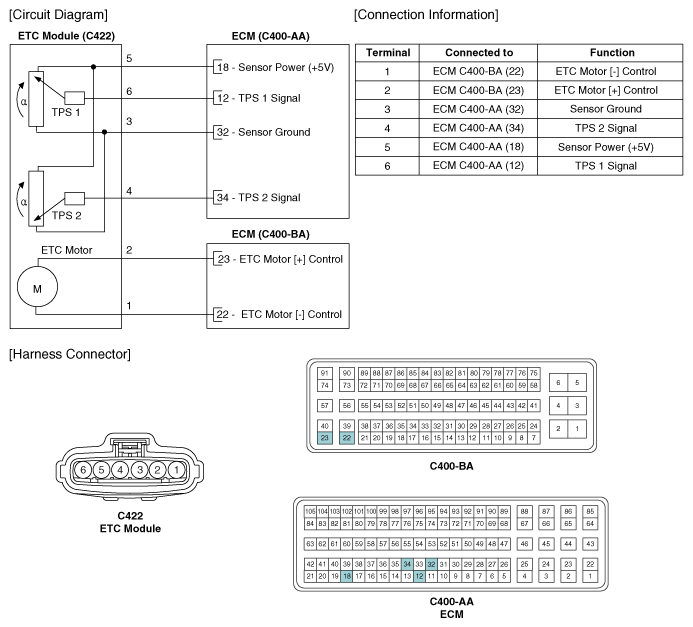

Fig 2: ETC Motor Circuit Diagram - A/T
G11794847Courtesy of KIA MOTORS AMERICA, INC.
