Circuit Diagram

(M/T)

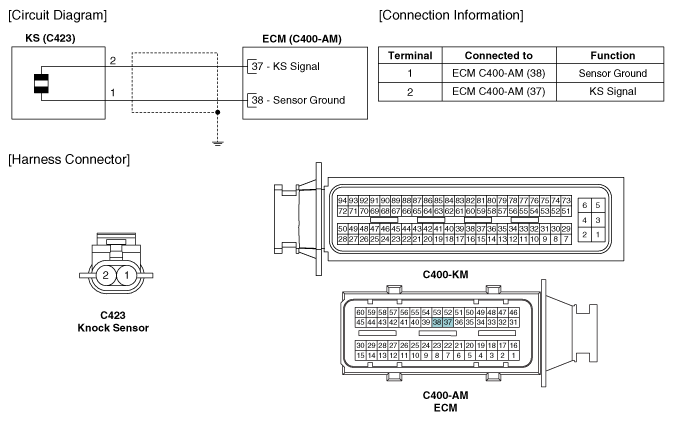

Fig 1: Knock Sensor (KS) Circuit Diagram - M/T

G11794892

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

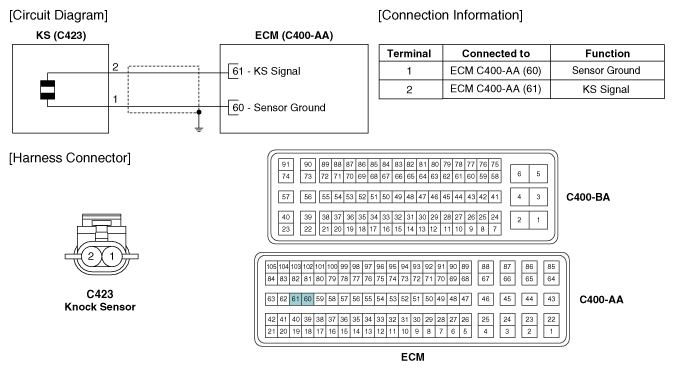

Fig 2: Knock Sensor (KS) Circuit Diagram - A/T

G11794893

Courtesy of KIA MOTORS AMERICA, INC.
