Circuit Diagram

(M/T)

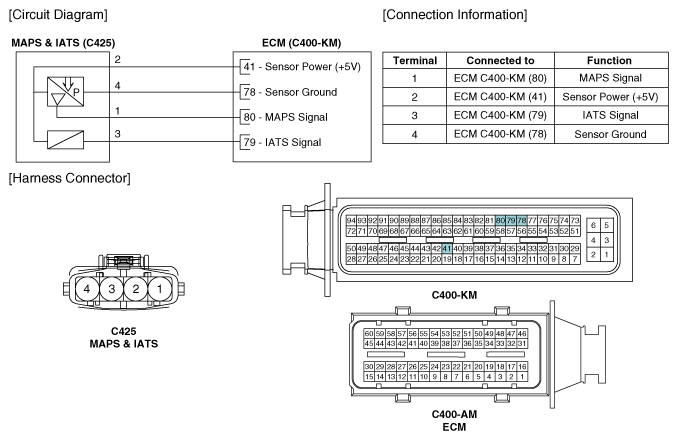

Fig 1: MAPS And IATS Circuit And Connector Terminals - M/T

G11794859

Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

Fig 2: MAPS And IATS Circuit And Connector Terminals - A/T

G11794860

Courtesy of KIA MOTORS AMERICA, INC.
