Home › Kia › 2016 › Forte LX, Automatic Trans › Repair and Diagnosis (Single Page) › Body & Frame › Seats › Front Seat Assembly › Components And Components Location › Components

Components And Components Location: Components

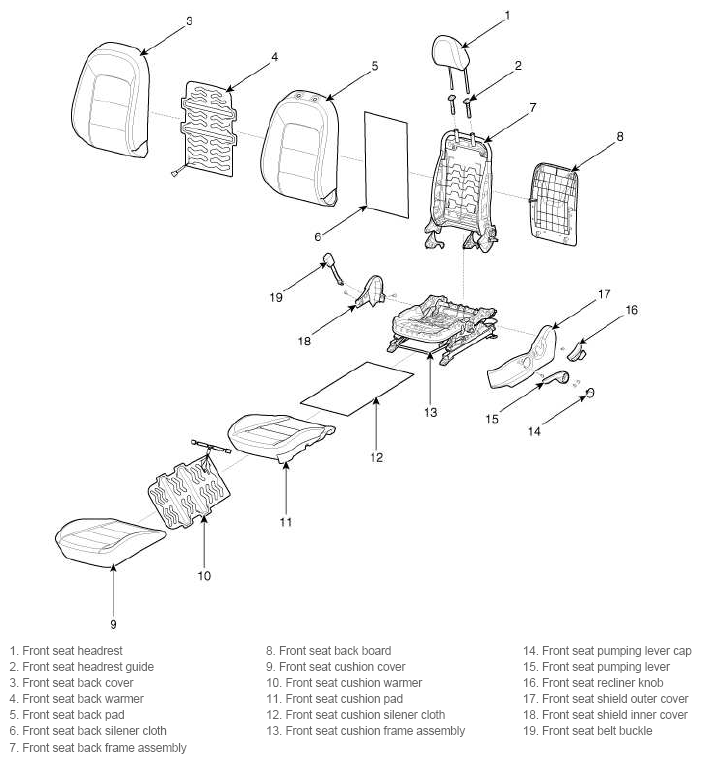

Fig 1: Exploded View Of Front Seat
G11791815Courtesy of KIA MOTORS AMERICA, INC.
