Signal Waveform & Data

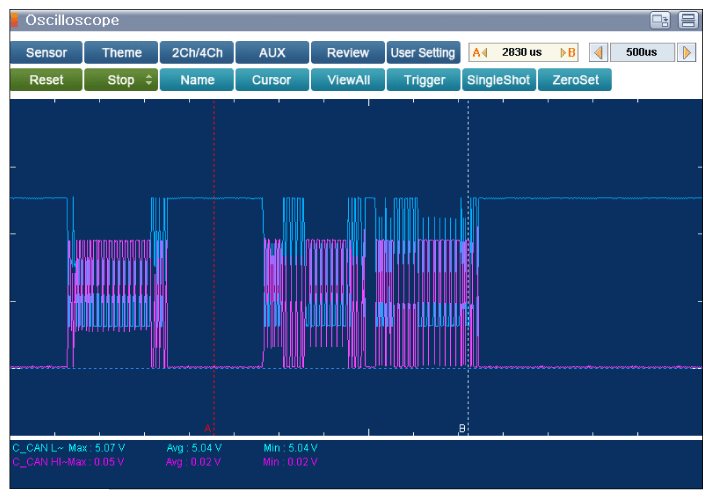

Fig 1: Screen Display - C_CAN Low & High Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

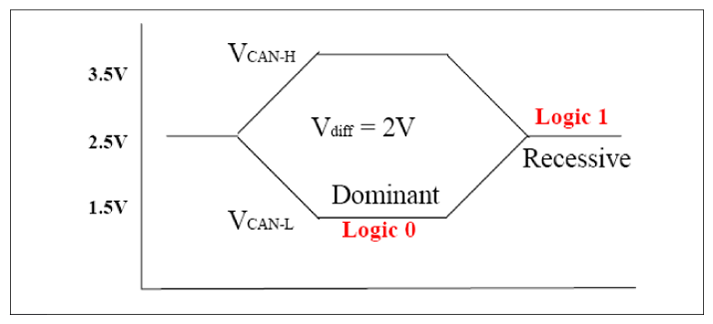

Fig 2: Screen Display - C_CAN BUS Voltage Level (High Speed CAN)

Courtesy of KIA MOTORS AMERICA, INC.
