Engine Control System - 1.8L
›
Heated Oxygen Sensor (HO2S)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

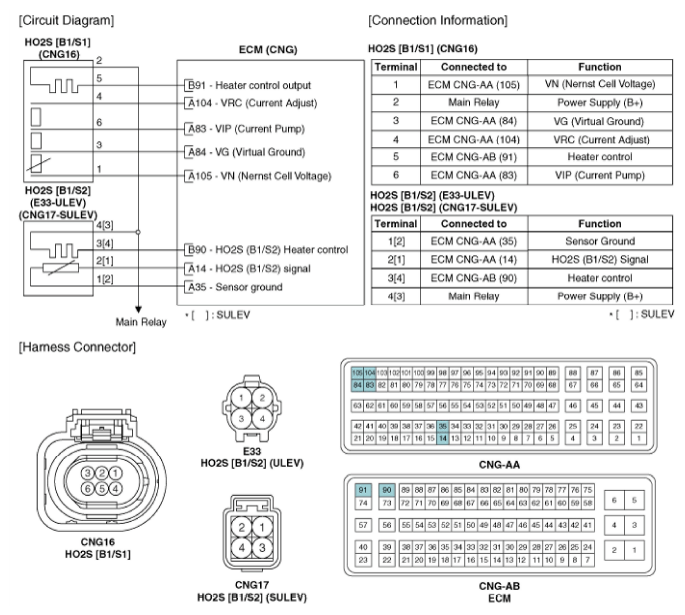

Fig 1: Heated Oxygen Sensor (HO2S) Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

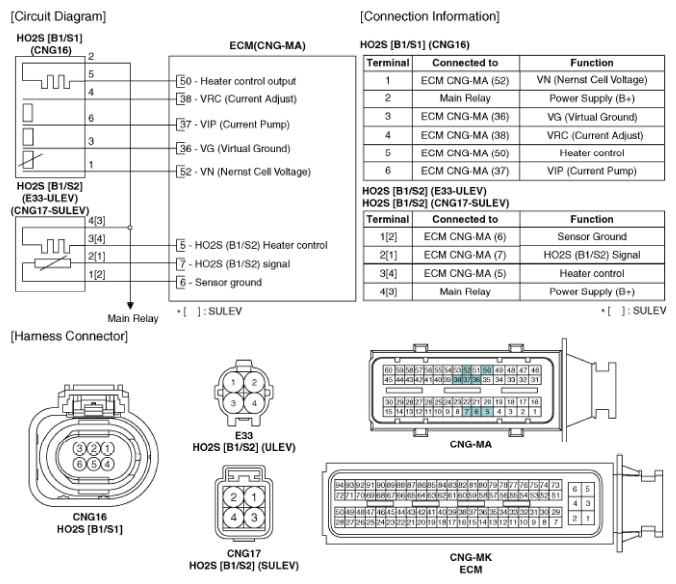

Fig 2: Heated Oxygen Sensor (HO2S) Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
