Purge Control Solenoid Valve (PCSV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram
(M/T)

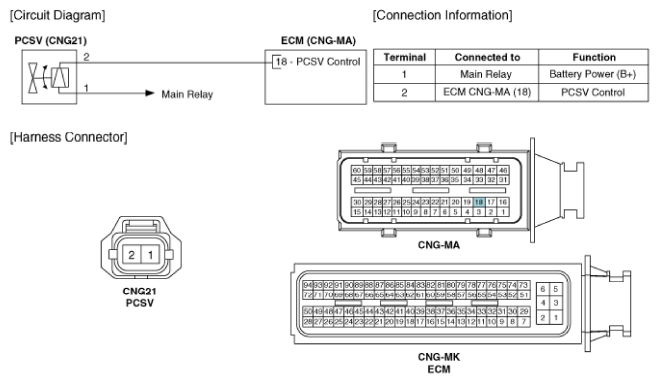

Fig 1: Purge Control Solenoid Valve Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.
(A/T)

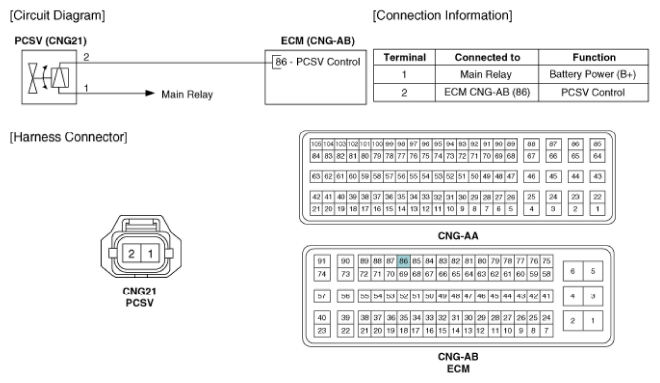

Fig 2: Purge Control Solenoid Valve Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
