Engine Control System - 1.8L
›
Variable Charge Motion Actuator (VCMA)
›
Components And Components Location
›
Components
Components And Components Location: Components

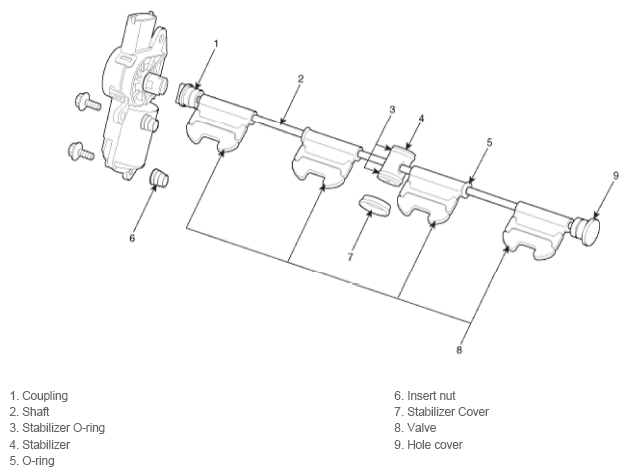

Fig 1: Variable Charge Motion Actuator Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
