Circuit diagram

(M/T)

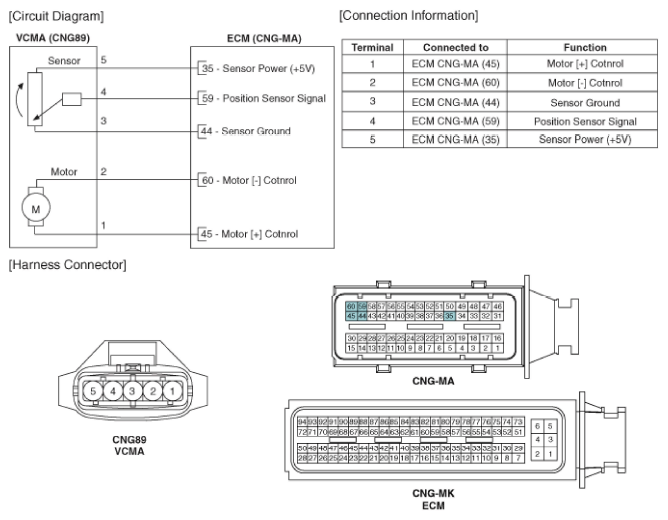

Fig 1: Variable Charge Motion Actuator Circuit Diagram (M/T)
G11793903Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

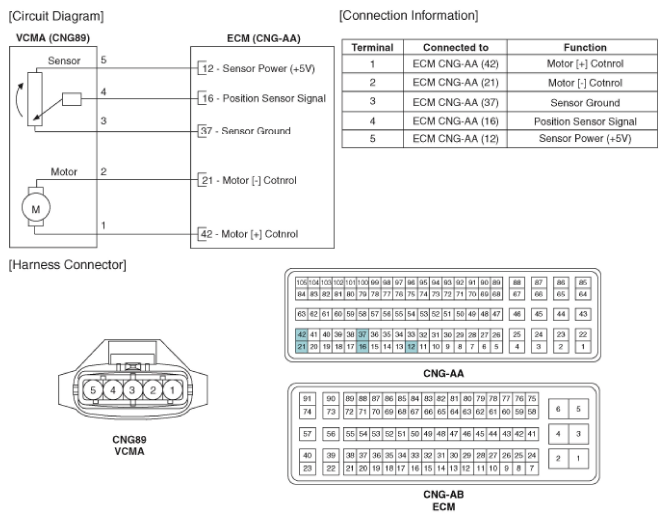

Fig 2: Variable Charge Motion Actuator Circuit Diagram (A/T)
G11793904Courtesy of KIA MOTORS AMERICA, INC.
