Idle Stop & Go (ISG) System - 1.8L
›
Components And Components Location
›
Components Location
Components Location

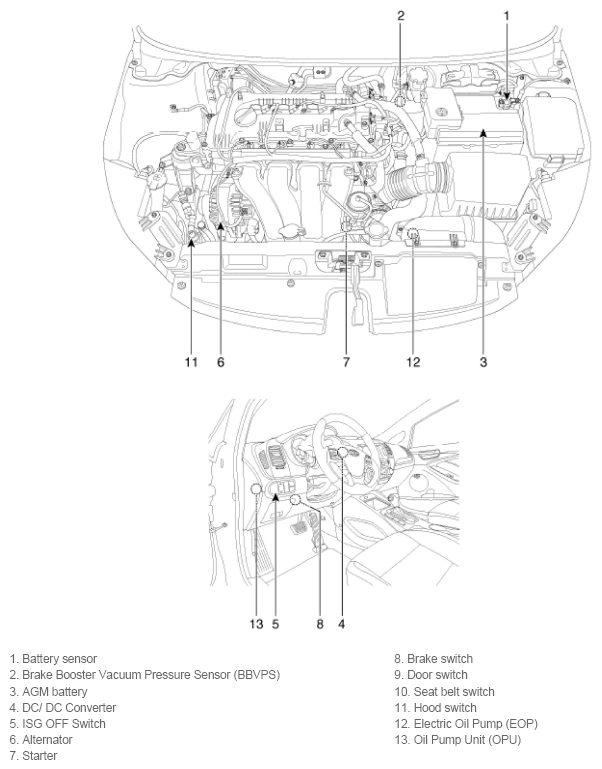

Fig 1: ISG Components Location (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

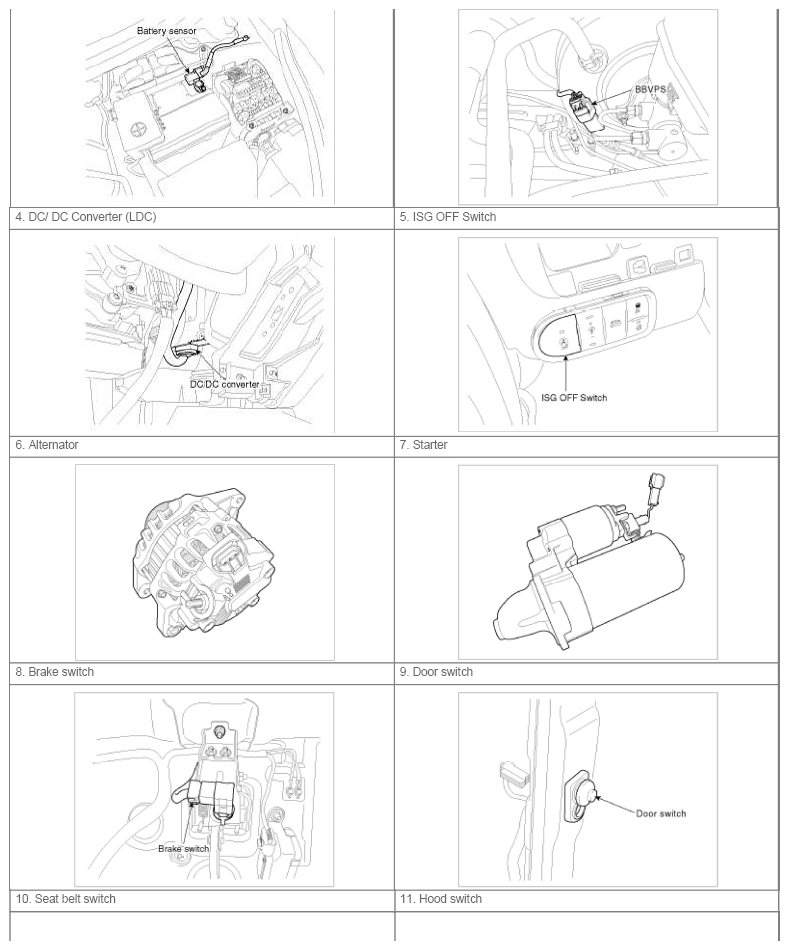

Fig 2: ISG Components Location (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

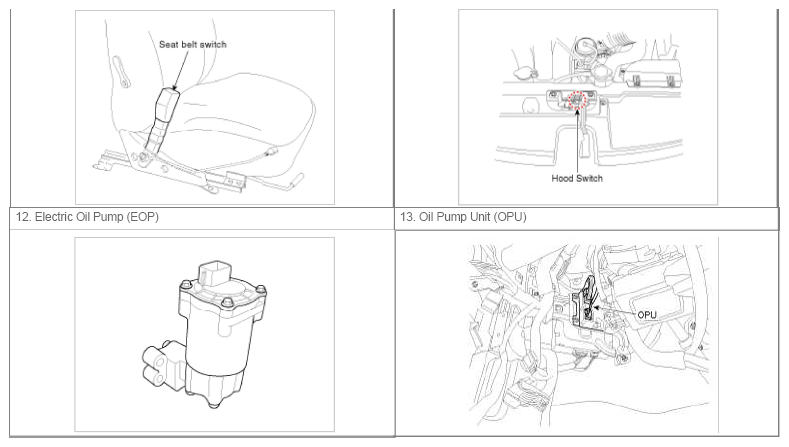

Fig 3: ISG Components Location (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: ISG Components Location (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
