Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).

Fig 1: Locate Accelerator Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

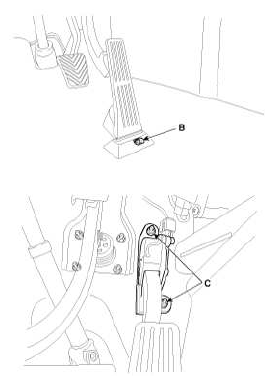

Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.

Fig 2: Locate Accelerator Pedal Module
Courtesy of KIA MOTORS AMERICA, INC.
