Fuel Delivery System - 1.8L
›
Components And Components Location
›
Components Location
Components Location
[SULEV Type]

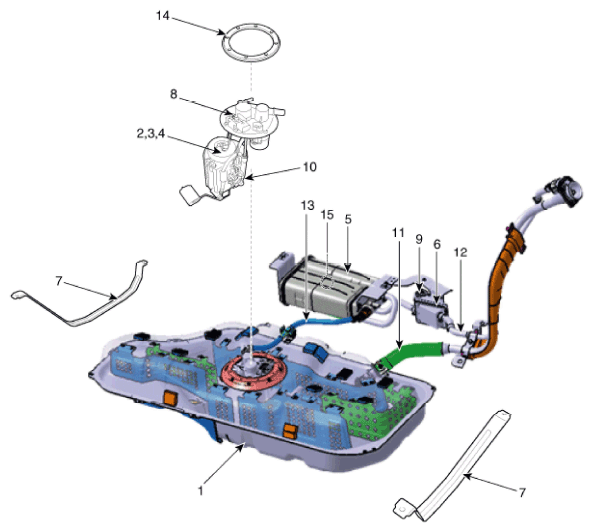

Fig 1: Fuel Delivery System Components Location (SULEV Type)
Courtesy of KIA MOTORS AMERICA, INC.
[LEV2 Type]

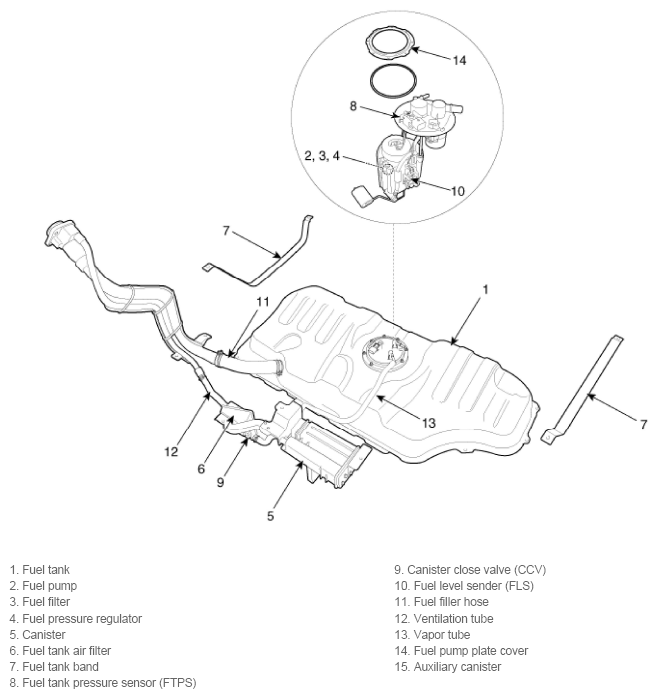

Fig 2: Fuel Delivery System Components Location (LEV2 Type)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
