Signal Waveform & Data

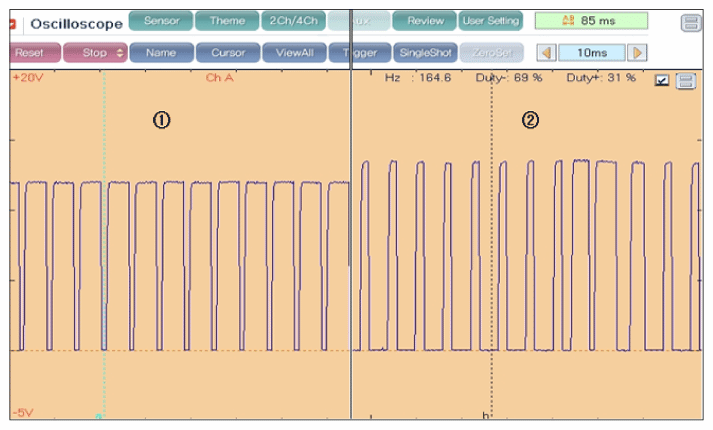

Fig 1: Scantool Display - Signal Waveform And Data (IG ON, Idle And No Electrical Load)

Courtesy of KIA MOTORS AMERICA, INC.

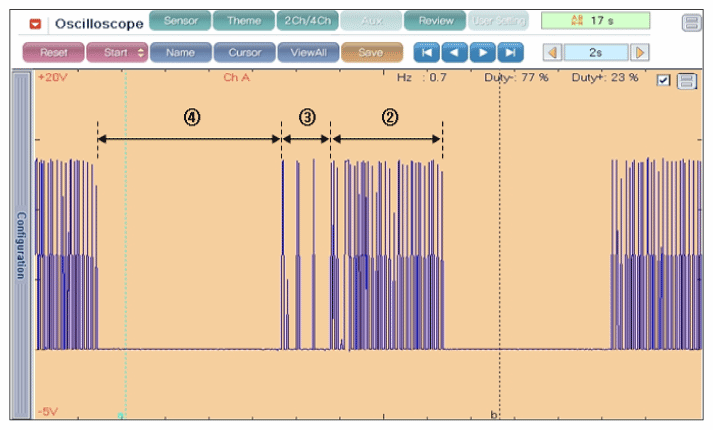

Fig 2: Scantool Display - Signal Waveform And Data (Idle, Electrical Load And Full Electrical Load)

Courtesy of KIA MOTORS AMERICA, INC.

Normal waveform with IG ON
Normal waveform with Idle and no electrical load
Normal waveform with Idle and part electrical load
Normal waveform with Idle and full electrical load (A/C, Defrost, Head Lamp, Repeater, Audio, etc)
