Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.

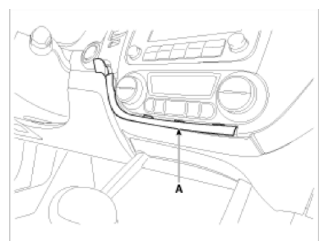

Using a screwdriver or remover, remove the center fascia garnish (A).

Fig 1: Center Fascia Garnish
Courtesy of KIA MOTORS AMERICA, INC.

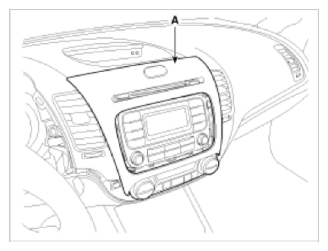

Using a screwdriver or remover, remove the center fascia panel (A).

Fig 2: Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

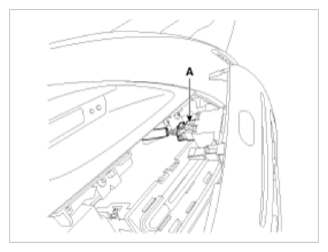

Remove the center fascia panel after disconnecting the hazard switch connector (A).

Fig 3: Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

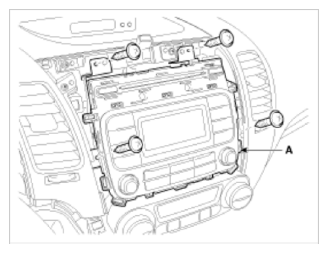

Remove the audio head unit (A) after loosening the mounting screws (4EA).

Fig 4: Audio Head Unit And Mounting Screws (4EA)
Courtesy of KIA MOTORS AMERICA, INC.

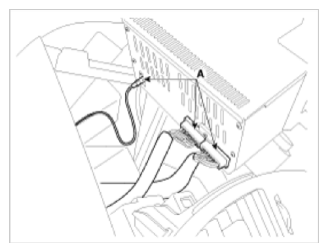

Disconnect the connectors and cable (A) from the audio head unit.

Fig 5: Audio Head Unit Connectors & Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the CD does not eject, do not attempt to remove it because the audio unit may be damaged. Contact an authorized dealership for assistance.
