Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake fluid level switch connector, and remove the reservoir cap.
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION: Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Remove the wheel & tire.
Disconnect the brake tube by loosening the tube flare nut (B).
Tightening Torque:

12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)

Front

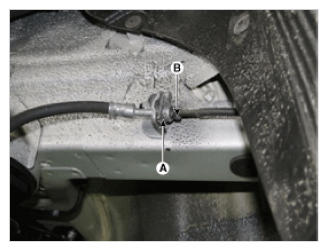

Fig 1: Tube Flare Nut & Brake Hose Clip (Front)
Courtesy of KIA MOTORS AMERICA, INC.

Rear

Fig 2: Tube Flare Nut & Brake Hose Clip (Rear)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake hose clip (A).
Disconnect the brake hose from the brake caliper by loosening the bolt (A).
Tightening Torque:

24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)

Front

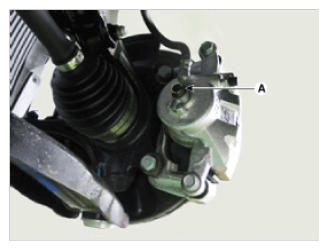

Fig 3: Brake Caliper Brake Hose Bolt (Front)
Courtesy of KIA MOTORS AMERICA, INC.

Rear

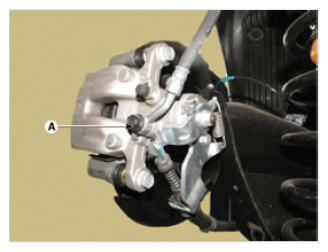

Fig 4: Brake Caliper Brake Hose Bolt (Rear)
Courtesy of KIA MOTORS AMERICA, INC.
