Bleeding Of ESC Brake System

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

This procedure should be followed to ensure adequate bleeding of air and filling of the ESC unit, brake lines and master cylinder with brake fluid.

Remove the reservoir cap and fill the brake reservoir with brake fluid.
CAUTION: If there is any brake fluid on any painted surface, wash it off immediately.

NOTE: When pressure bleeding, do not depress the brake pedal.

Recommended Fluid: DOT3 or DOT4
Connect a clear plastic tube to the wheel cylinder bleeder plug and insert the other end of the tube into a half filled clear plastic bottle.
Connect the GDS to the data link connector located underneath the dash panel.
Select and operate according to the instructions on the GDS screen.
CAUTION: You must obey the maximum operating time of the ABS motor with the GDS to prevent the motor pump from burning.
1. Select vehicle name.
2. Select Anti-Lock Brake system.
3. Select HCU air bleeding mode.

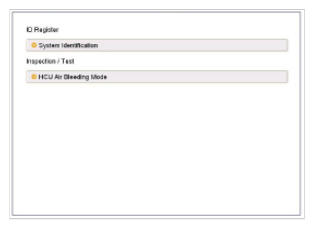

  Fig 1: Display - GDS Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. Press "OK" to operate motor pump and solenoid valve.

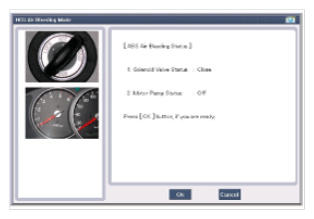

  Fig 2: Display - Motor Pump Selection Screen
  Courtesy of KIA MOTORS AMERICA, INC.
5. Wait 60 sec. before operating the air bleeding.
  (If not, you may damage the motor.)

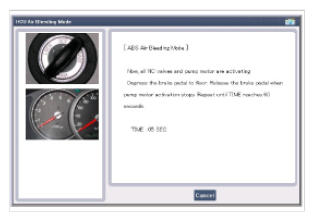

  Fig 3: Display - Air Bleeding Screen
  Courtesy of KIA MOTORS AMERICA, INC.
6. Perform the air bleeding.

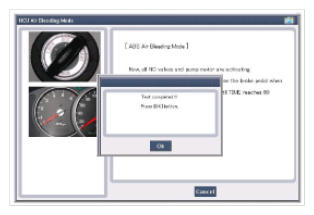

  Fig 4: Display - Air Bleeding Selection Screen
  Courtesy of KIA MOTORS AMERICA, INC.
Pump the brake pedal several times, and then loosen the bleeder screw until fluid starts to run out without bubbles. Then close the bleeder screw (A).
Front Disc Brake

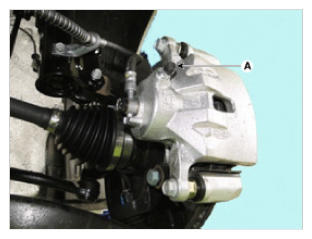

Fig 5: Front Disc Brake Bleeder Screw
Courtesy of KIA MOTORS AMERICA, INC.

Rear Disc Brake

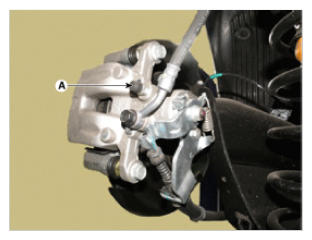

Fig 6: Rear Disc Brake Bleeder Screw
Courtesy of KIA MOTORS AMERICA, INC.
Repeat step 5 until there are no more bubbles in the fluid for each wheel.

Fig 7: Brake Bleeding Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the bleeder screw.
Bleed Screw Tightening Torque:

7 ~ 13 N.m (0.7 ~ 1.3 kgf.m, 5.4 ~ 9.5 lb-ft)
