Repair Procedures: Removal
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front wheel & tire.
Tightening Torque:
88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft)

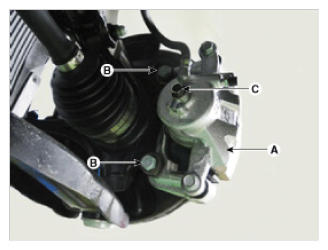

- Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front caliper assembly (A).
Tightening Torque:
Brake hose to caliper (C):
24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)
Caliper assembly to knuckle (B):
78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

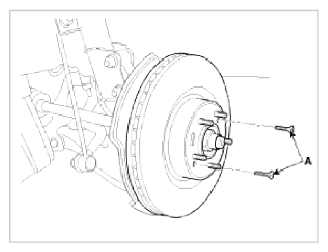

- Remove the front brake disc by loosening the screws (A).
