Automatic Transaxle System - 1.8L
›
Automatic Transaxle
›
Components And Components Location
›
Components Location
Components Location

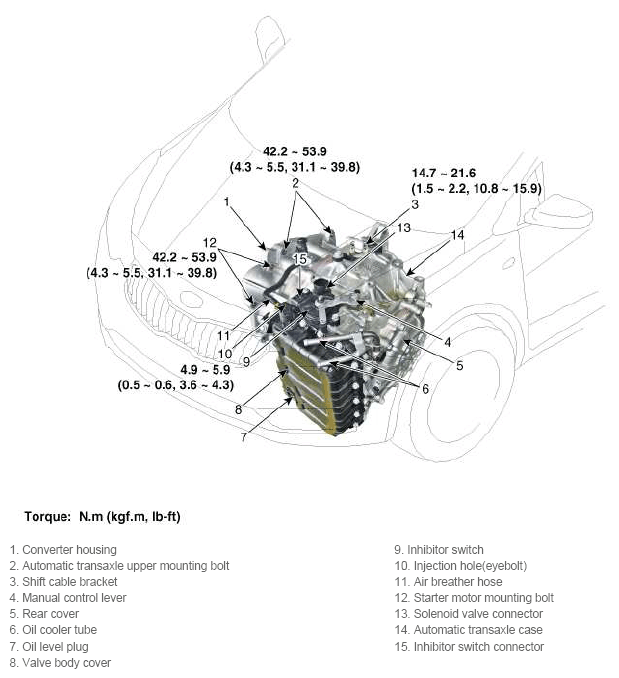

Fig 1: Automatic Transaxle System Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
