Starting System - 1.8L: Troubleshooting

NOTE:

• The battery must be in good condition and fully charged for this troubleshooting.

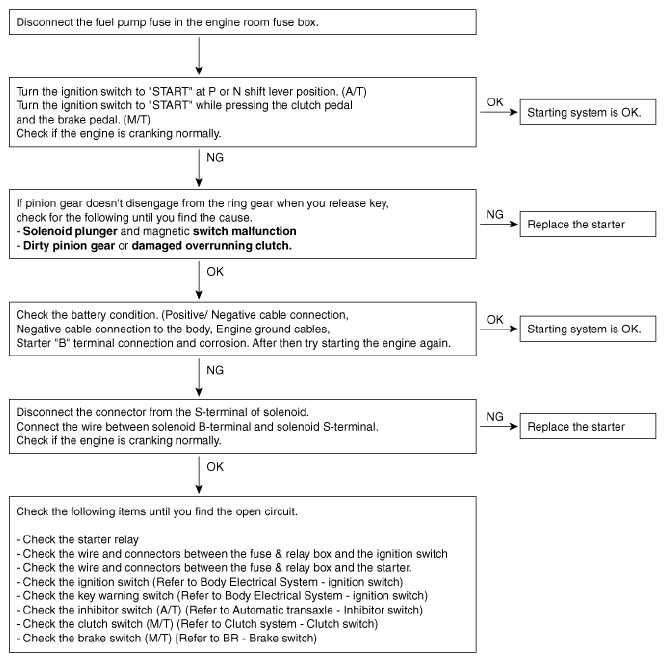

Fig 1: Starting System Troubleshooting Flowchart

Courtesy of KIA MOTORS AMERICA, INC.
