Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.8L
›
Components And Components Location
›
Components Location
Components Location

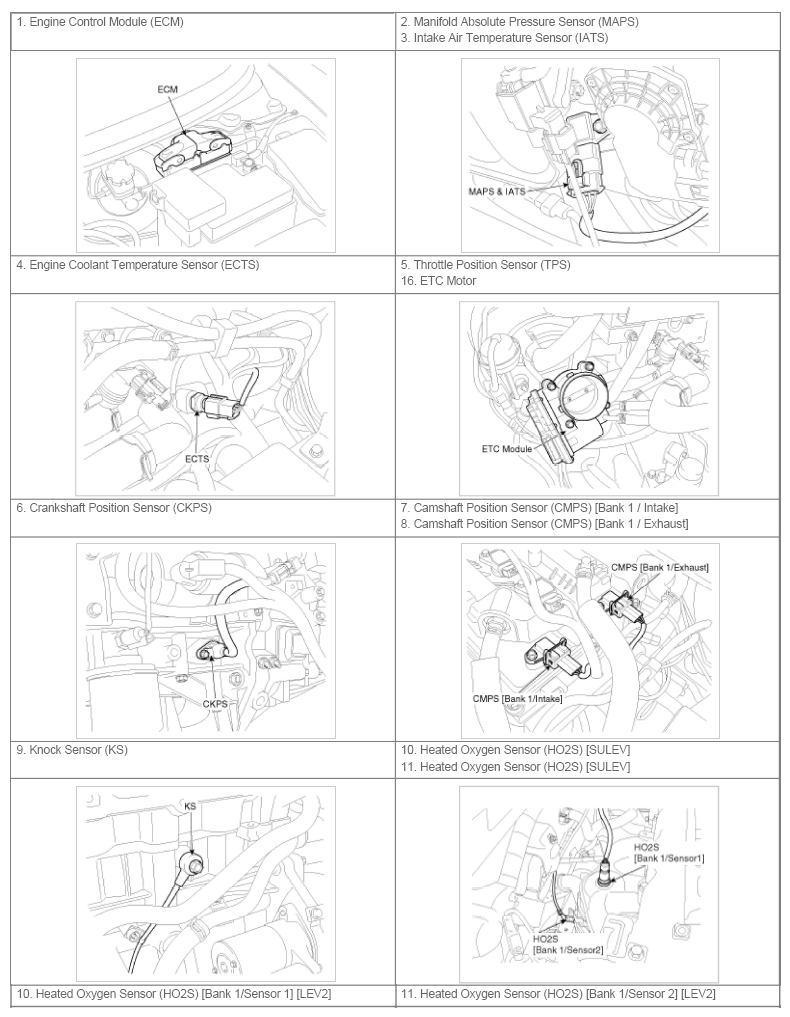

Fig 1: Engine Control/Fuel System Components Location (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

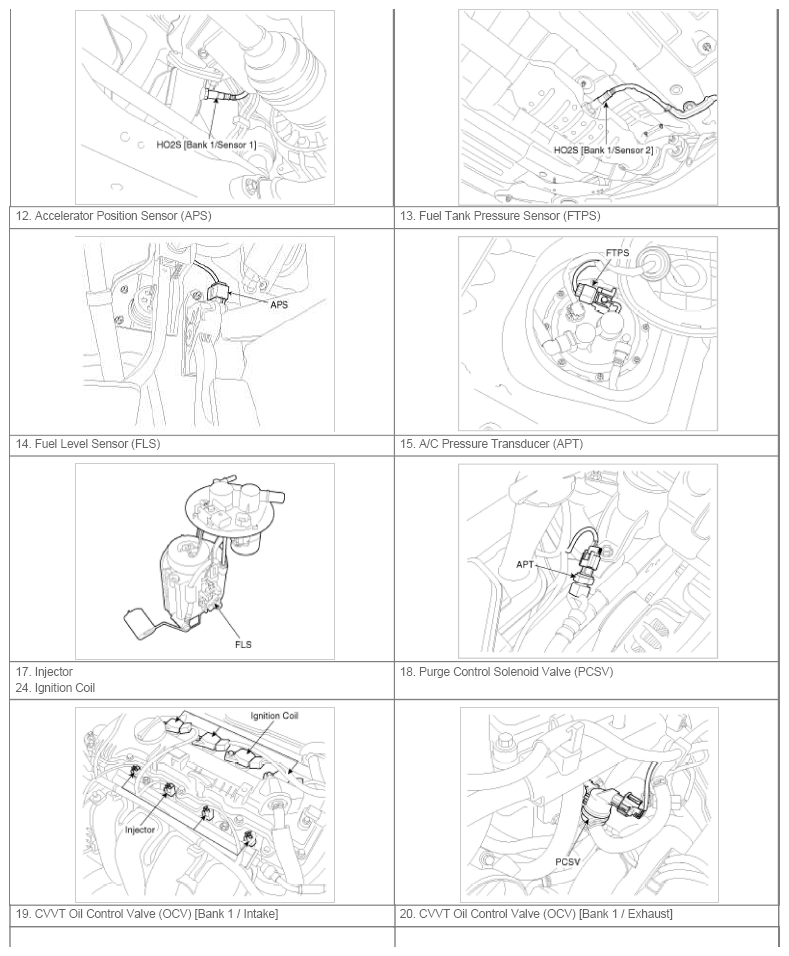

Fig 2: Engine Control/Fuel System Components Location (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

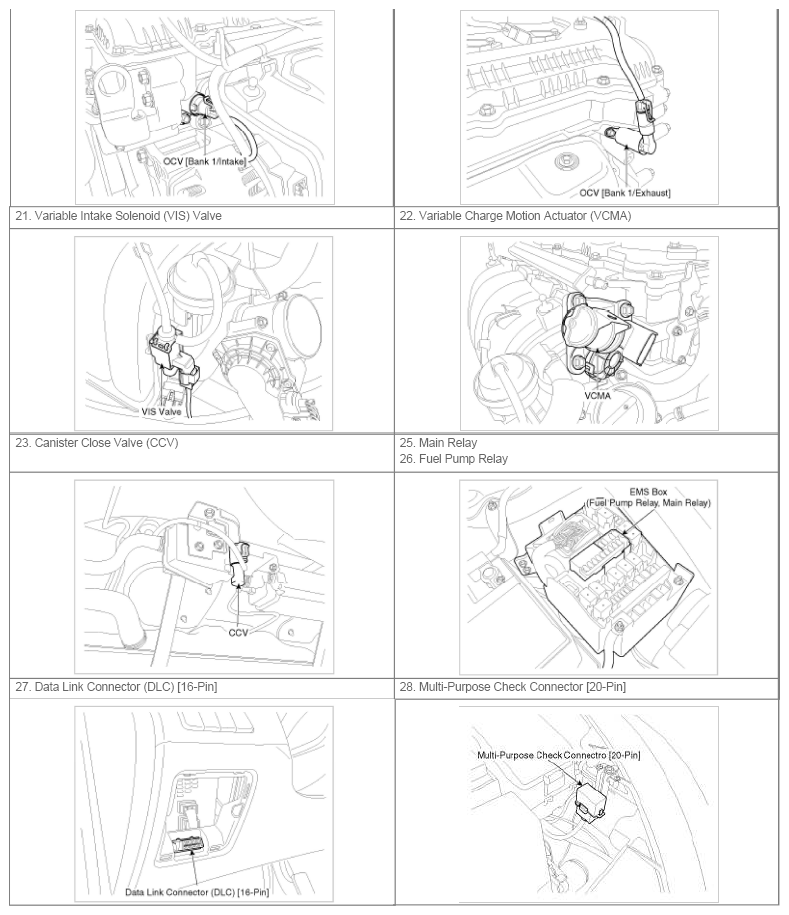

Fig 3: Engine Control/Fuel System Components Location (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

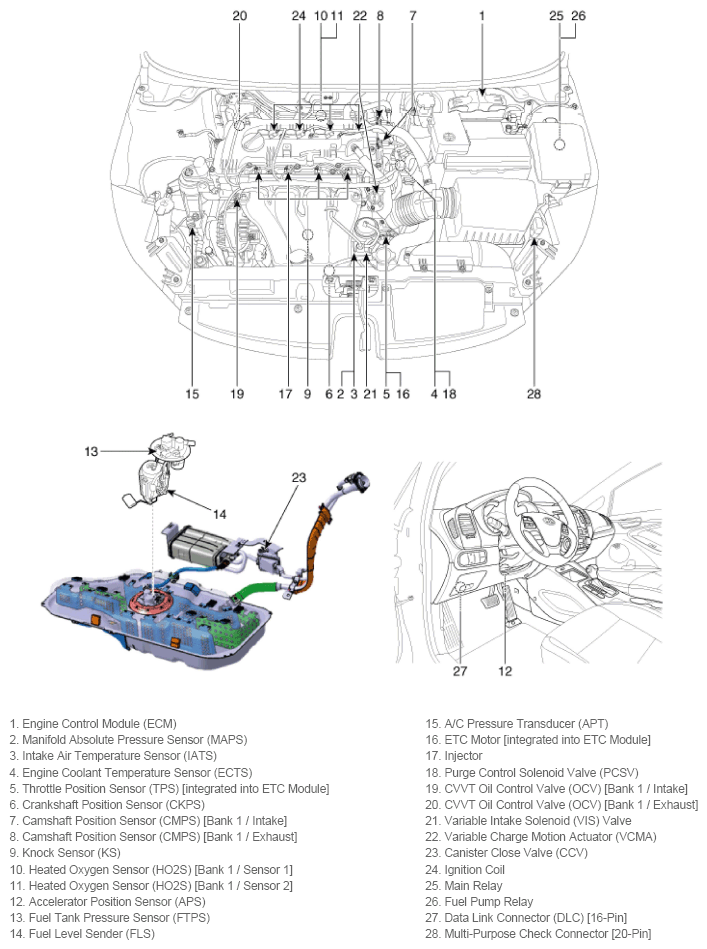

Fig 4: Engine Control/Fuel System Components Location (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
