Home › Kia › 2016 › Forte5 EX › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Block - 2.0L › Crankshaft › Components And Components Location › Components

Components And Components Location: Components

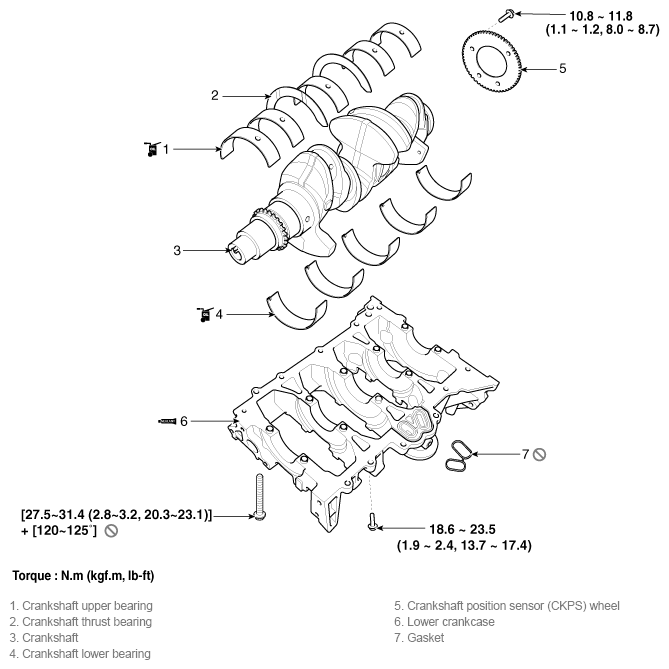

Fig 1: Crankshaft Components With Torque Specification
G11796638Courtesy of KIA MOTORS AMERICA, INC.
