Engine Control System Diagnosis - 2.0L (1 Of 3)
›
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

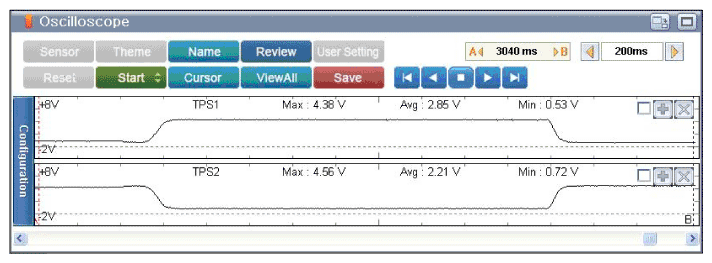

Fig 1: Scantool Display - Normal Waveform Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
Courtesy of KIA MOTORS AMERICA, INC.
