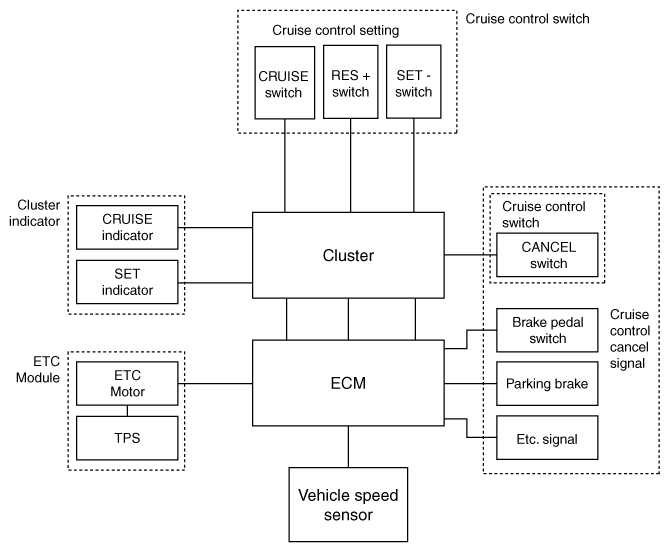

System Block Diagram: Notes

WARNING: This page is about a different variant/trim than selected.
G11794720Courtesy of KIA MOTORS AMERICA, INC.
