Lubrication System - 2.0L
›
Flow Diagram
›
Engine Oil Schematics
Engine Oil Schematics

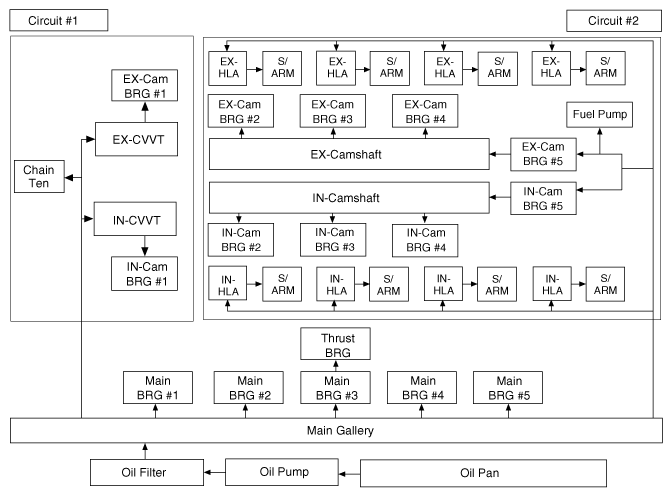

Fig 1: Engine Oil Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
